Описание товара

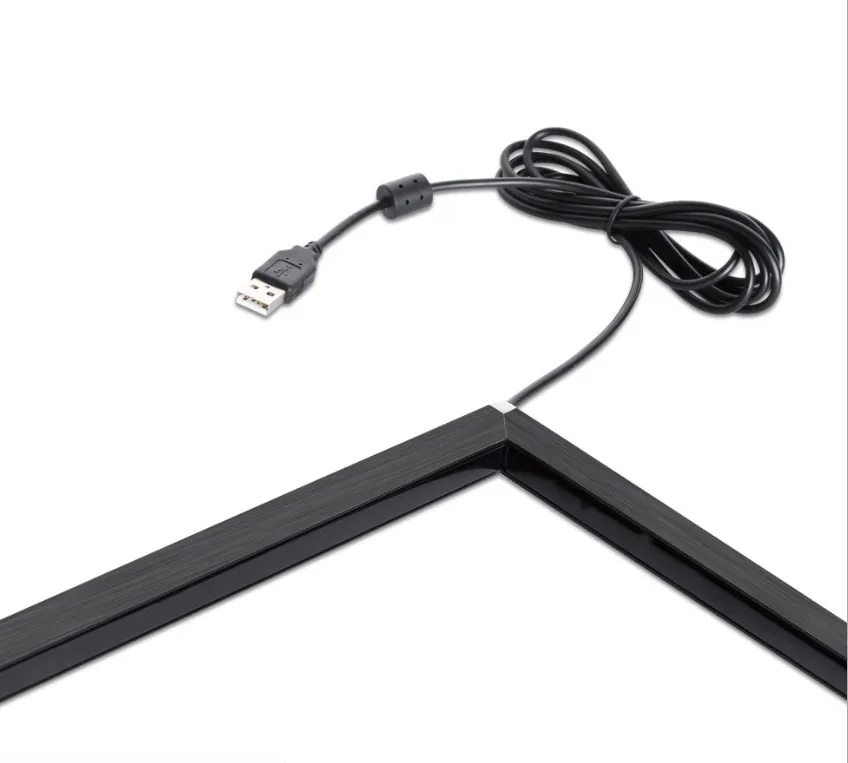

40inch IR Multi Touch Screen Overlay
Infrared Touch Screen Aluminum Frame
Infrared touch screen is to use a dense matrix of infra-red x, y directions to detect and locate the user's touch. Infrared touch screen installed in front of the monitor box outside a circuit board, circuit board arranged on four sides of the screen infrared led and an infrared receiver and corresponding anyway cross the infrared matrix.
When users touch the screen, fingers will be blocked anyway after the location for both infrared and therefore can judge the position of the touch points on the screen .it can detect essentially any input including a finger, gloved finger, stylus or pen.
Produt Specification
Mechanical
| Standard Size | 40" |
| Border Width | 19mm |
| Thickness | 16mm(4mm toughened glassf for optional) |
| Shell | Aluminium |
| Installation | Embedded,Plug-In(optional plug-in accessory) |
| Touch Medium | Opacity object |
| Sensor | Infrared Ray |
| Luminousness | 100%(No glass), Up to 95%(Tempered glass) |
| Working Life | unLimited |
| Touch Pressure | Zero Pressure |
Electrical
| Output Resolution | 32767x 32767 |
| Touch Precision | <2mm(Centre area),<3mm(Edge area) |
| Smallest Touch Objects | >5mm |
| Touch Depth | <3mm |
| Output Type | Absolute Value Of Coordinate |
| Calibrate | Not Require Recalibration |
| Response Speed | <15ms |
| Points Recognition | More than 10mm between two points |
| Power Requirement | DC 5V±5%,250±20mA |
| Consumption | <2W,Typical 1.2W(DC5V Power) |
| Power Type | USB Power,PS/2 Power(RS232 Interface Product) |
| Interface | USB 2.0 Full Speed, RS232 (9600/38400) |
Environmental
| WaterProof | Support customized IP65 product |
| Highlight | Incandescent light (220V,100W) height more than 400mm,Sunlight 80000Lux |
| Temperature | Operating: -20℃ ~ 60℃ Storage: -30℃ ~ 85℃ |
| Humidity | Operating:10%-90% RH,40℃ Storage: 10%-90% RH,40℃ |
Software
| Touch Points | 10 Points ,max |
| Scan | Auto Scan after power on |
| Event Detection | Touch Start, Hold, End |
| Upgraded | Upgraded with USB and RS232 interface |
| Driver | Without any driver(USB Product),RS232 product supply driver |
| Touch Events | Virtual Mouse(Click,Double-Click,Drag,Right Button),Windows7/8/10 Touch Event |
| OS Support | windows xp,windows 7/8/10. Linux, Mac OS X, Android,Chrome OS |
| Sleep Mode | synchronism sleep, asynchronous sleep |
Certificate
| Electrical | CE, FCC Class B |
| Other | ROHS, ISO9001:2008 |
We provide all kinds of sizes(9.7"-86"),you can also customize it.

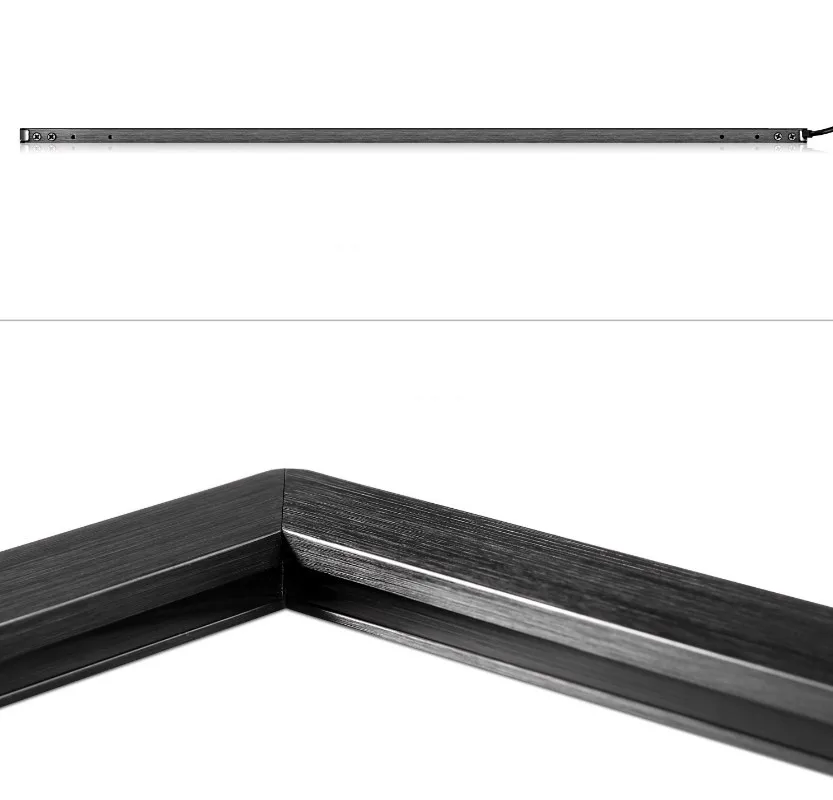

Product Detail![HTB16T9iE29TBuNjy1zbq6xpepXad[1]_conew2](http://ae01.alicdn.com/kf/HTB16JgeaOLxK1Rjy0Ffq6zYdVXai.jpg)

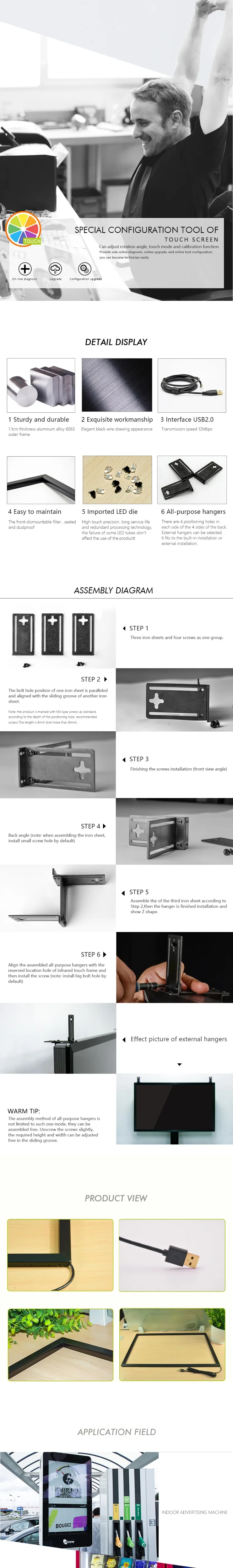

![HTB1D1GiEYGYBuNjy0Foq6AiBFXaI[1]](http://ae01.alicdn.com/kf/HTB1RpAjaJzvK1RkSnfoq6zMwVXam.jpg)
