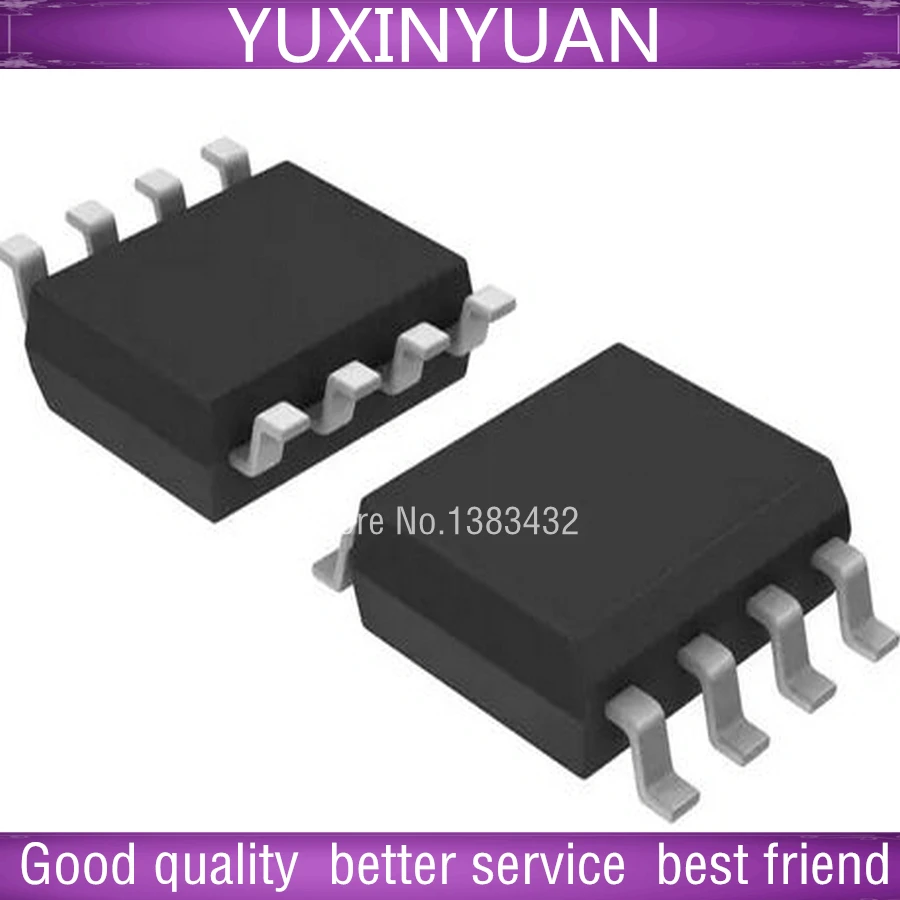

1 шт. пятно FR9888 FR9888SPGTR SOP-8 можно приобрести напрямую | Обустройство дома
155,60 руб. / набор
Новое поступление
Электронное реле времени ST3PF AC380V 36 в 24 В резистивный таймер выгрузки задержки SPDT с
5PCS JQX-14FC 1Z 220V AC Coil 10A 220VAC / 30VDC Electromagnetic Relay 5 Pin SPDT | Обустройство дома
2 395,28 руб. / lot

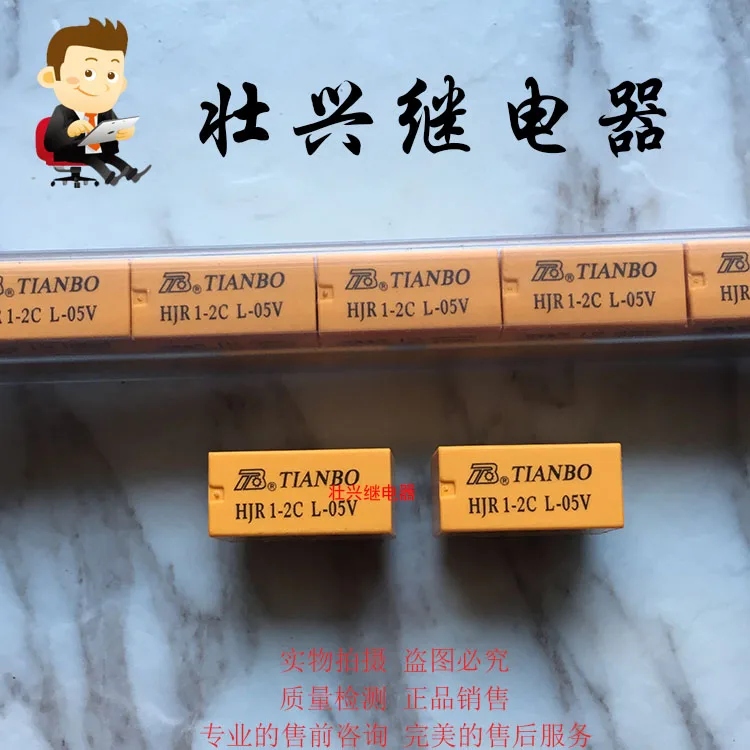

Реле HJR 1-2C 8 контактов 5 в пост. Тока | Обустройство дома
1 шт./лот LM3080N LM3080 DIP8 Новый и оригинальный в наличии | Обустройство дома
172,16 руб.
Новая PY08-02 релейная розетка для MY2NJ HH52P РЕЛЕ 8 контактов | Обустройство дома
AD22B04 12V 4 Channel DTMF Tone Signal Decoder Relay Phone Remote Control PLC Delay Module | Обустройство дома
2 421,76 руб.
TSR-100DA релейный модуль твердотельного 3 фазы 3-32 В постоянного тока до 30-480
6 330,02 руб.
eletechsup Outlet Store
Магазина eletechsup Outlet Store работает с 23.07.2016. его рейтинг составлет 96.47 баллов из 100. В избранное добавили 3139 покупателя. Средний рейтинг торваров продавца 4.8 в продаже представленно 1373 наименований товаров, успешно доставлено 21155 заказов. 4820 покупателей оставили отзывы о продавце.
Характеристики
220V 433Mhz 4 Key Remote Control & 4pcs 1 Channel Relay Wireless Controller AC Smart Switch kit For Home Automation | Обустройство
История изменения цены
*Текущая стоимость 4 467,77 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Jun-23-2026 | 5673.0 руб. | 5786.87 руб. | 5729.5 руб. |
| May-23-2026 | 4601.56 руб. | 4693.39 руб. | 4647 руб. |
| Apr-23-2026 | 5584.27 руб. | 5696.84 руб. | 5640 руб. |
| Mar-23-2026 | 5539.26 руб. | 5650.50 руб. | 5594.5 руб. |
| Feb-23-2026 | 4422.2 руб. | 4510.65 руб. | 4466 руб. |
| Jan-23-2026 | 5450.58 руб. | 5559.37 руб. | 5504.5 руб. |
| Dec-23-2025 | 5405.27 руб. | 5513.57 руб. | 5459 руб. |
| Nov-23-2025 | 5360.92 руб. | 5467.45 руб. | 5413.5 руб. |
Описание товара
Typical applications: Remote control switchSmart Home / Home AutomationLED lighting3d printerFluorescent lamp220V AC Motor(<500W)
Product Name :220V 433Mhz 4 Key Remote Control & 4pcs 1 Channel Relay Wireless Controller AC Smart Switch kit For Smart Home Automation
Packing list:
4 PCS 433M 220V 1 Channel Relay Receiver1 PCS 433M 4 Key Remote Control
Technical indicators:
Operating voltage : AC 180~250V(Default 220V);
Operating frequency : 433.92MHz ;Receiver sensitivity :-95dB;Decoder : EV1527 PT2262 PT2264;
Momentary / Latch / Toggle selectable (defult is Toggle , Latch Mode need 2 buttons handsender );Input : 220V;Output : 220V With Switch;
Receiver size: 62 * 35 * 22 mm;Max load : 500W; Advantage :1: Receiver Mother board have a learning key , if the remote is lost , must buy EV1527 OR Pt2262 remotes to re-learn; Work mode (programmable )
singnal Inter-locking (Latch)
singnal Self-locking (Toggle is defult )singnal Non-locking (Momentary) Work mode explanation:Momentary------------Press the Transmitter button A, the receiver relay A is ON, release button A; the receiver relay A is OFF, the same as B/C/D ,Every channel is Independent ; Toggle---------------Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF, the same as B/C/D. Every channel is Independent ; Latched------------------Press transmitter button A, the receiver relay A is ON, the relay B/C/D is OFF.Press transmitter button B, the receiver relay B is ON, the relay A/C/D is OFF.Press transmitter button C, the receiver relay C is ON, the relay A/B/D is OFFPress transmitter button D, the receiver relay D is ON, the relay A/B/C is OFF. Normally, we would adapter remote control and receiver.If the item you received has not been adapted Or you need to add accessories, Please follow the instructions below Program steps :1: keep pressing learning key on the receiver controller ,LED turn on after 2 second , then turn off after 4 second, then the receiver controller enter programming state , but not release the finger , still keep pressing the learning button , LED blink once after 2 second , release the finger on learing key , it is Momentary mode , or still keep pressing learing key ,LED blink twice after 2 second , release the finger on learing key , it is Toggle mode ,or still keep pressing learing key ,LED blink 3 times after 2 second , release the finger on learing key , it is Latch mode , Learning method and steps
Keep pressing learnig key on receiver controller board , LED turn on after 2 seconds , release the finger on learning key , press the key on remote , work state LED blink 3 times , it means learnig successfully ;
Clear the deposit information
Keep pressing learnig key on receiver controller board, LED turn on after 2 seconds , then turn off after 4 seconds , it means clearing successfully .
433M 4 Button EV1527 Remote Control:Technical Data :Power supply : 12V 27A battery replacable .(This remote doesnot have a battery , Please buy in your local market )Operating current: ≤ 12mA ;Oscillation mode: SAW resonator ;Oscillation resistor : 330KModulation mode: ASK ;Operating frequency: 433.92MHz ;Frequency dev iation: ±0.2MHz ;Encoding format: Million Group Code ( EV1527 ) ;Transmit power: 10 mW.Data Rate : 50~60KHZ;
